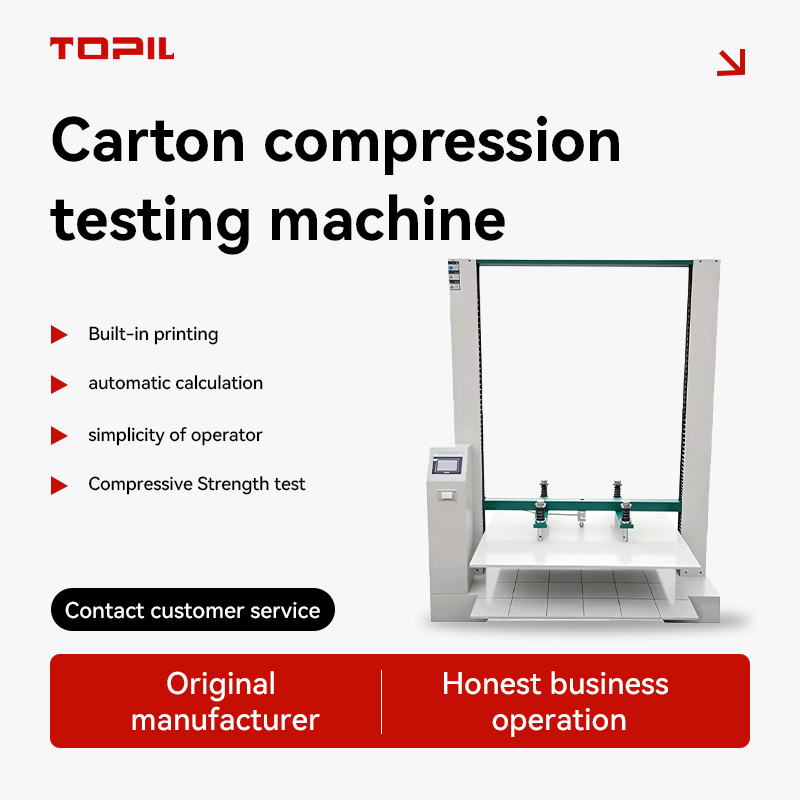

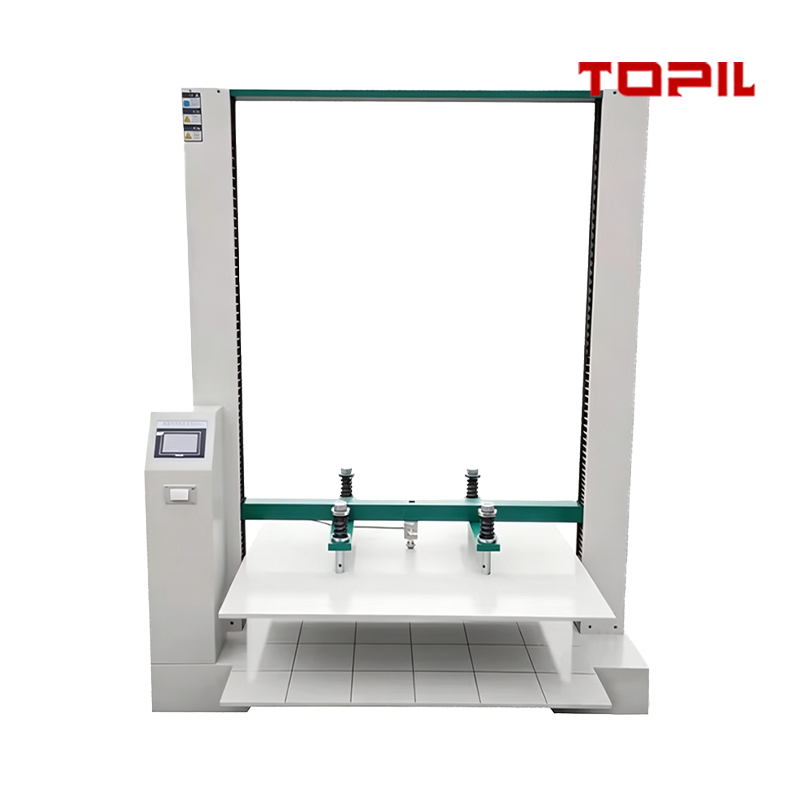

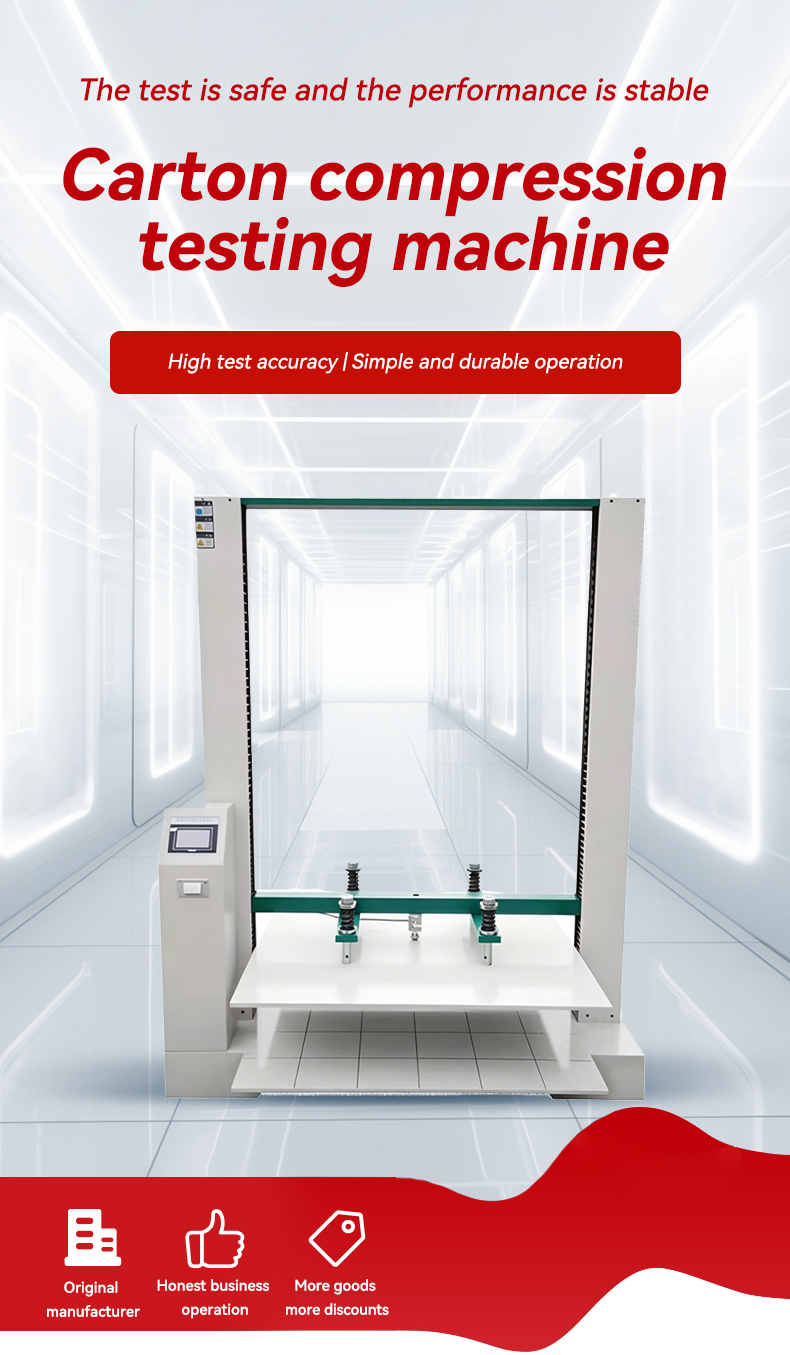

TOPIL Fortis-Box™ Carton Compression Tester – High-Precision BCT for Stacking & Crush Resistance Testing

Key Features

• Advanced Crush Resistance Testing: Accurately determines the maximum load a carton can withstand before collapsing.

• Stacking Endurance Mode: Simulates long-term warehouse storage by applying a constant load over a set duration to check for deformation.

• Large Compression Platens: High-rigidity parallel platens ($600\text{mm}$, $800\text{mm}$, or $1000\text{mm}$ options) to accommodate various box sizes.

• Precision Load Cell System: Utilizes 4 high-precision sensors to ensure uniform force distribution and measurement accuracy within ±0.5%.

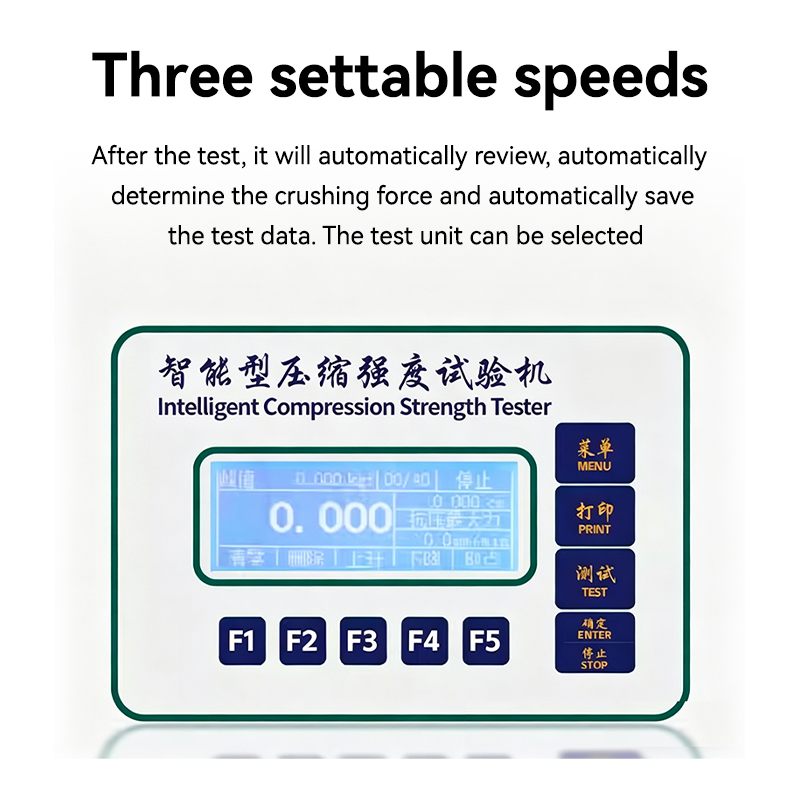

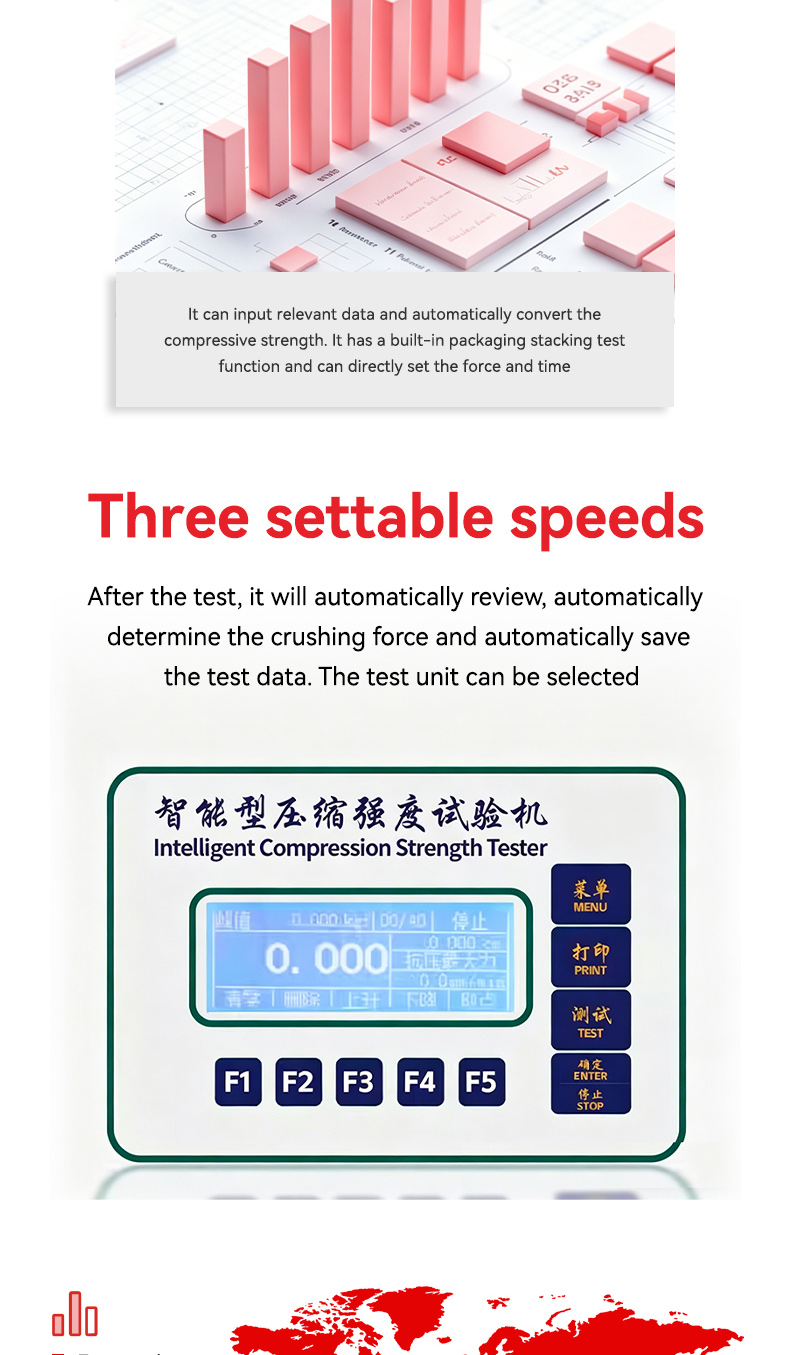

• Intelligent Touchscreen Control: 7-inch color PLC interface displays real-time Force vs. Displacement curves and peak values.

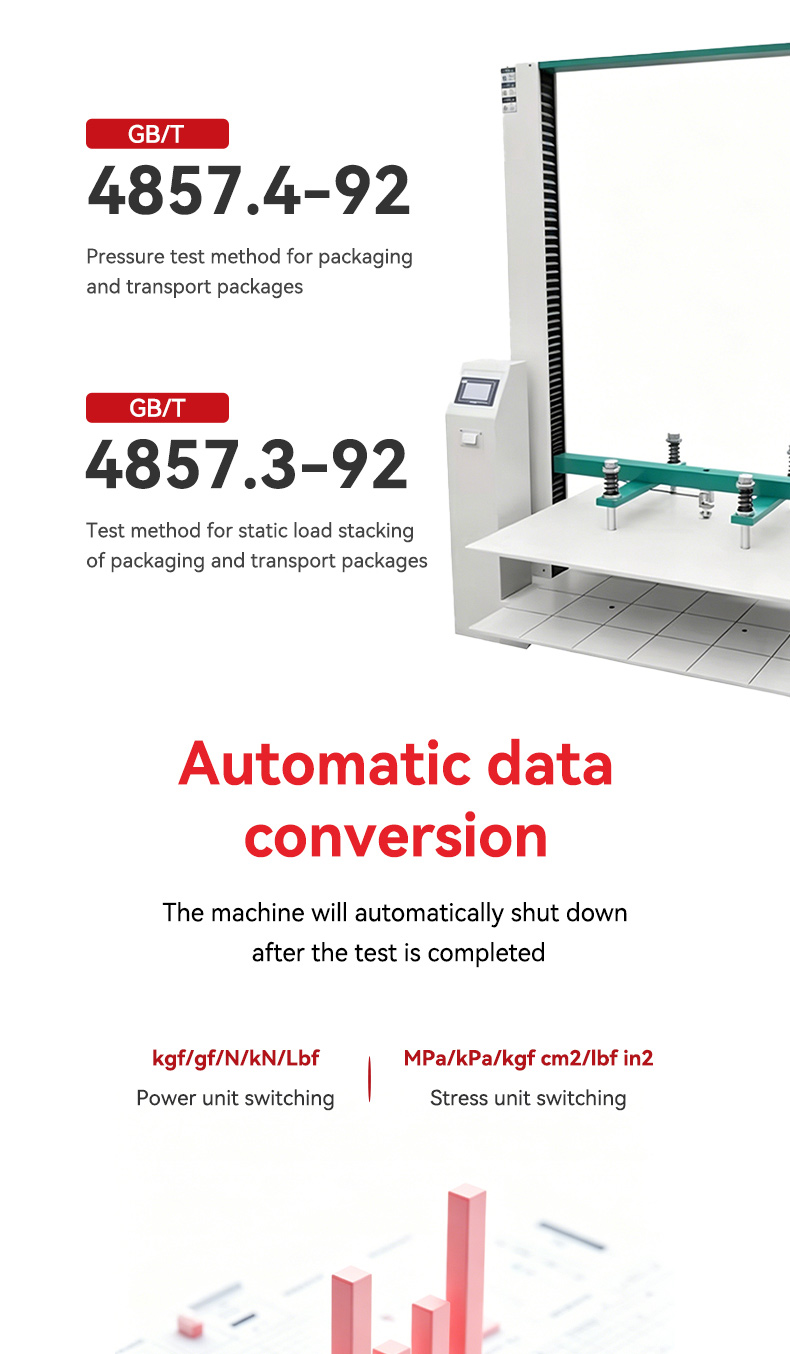

• Standard Compliance: Fully meets and exceeds ISO 12048, ASTM D642, and GB/T 4857.4 requirements.

---

Technical Deep-Dive

1. Reliable Four-Sensor Architecture

Unlike entry-level testers that use a single central sensor, the Fortis-Box™ features four high-precision load cells—one at each corner of the platen. This ensures that even if a box is slightly off-center, the measurement remains 100% accurate, eliminating the “tilting error” common in inferior machines.

2. Multi-Functional Test Modes

• Strength Test: Measures the ultimate crushing force of the package.

• Fixed-Value Test: The machine stops automatically when a pre-set force is reached.

• Stacking Test: Maintains a constant pressure for hours or days to simulate real-world stacking in a container or warehouse.

3. Industrial-Grade Build & Safety

Reflecting TOPIL’s 22-year legacy, the frame is built from reinforced cold-rolled steel with a precision-ground lead screw drive. Safety features include an Emergency Stop, Overload Protection, and Travel Limit Switches to protect both the operator and the load cells

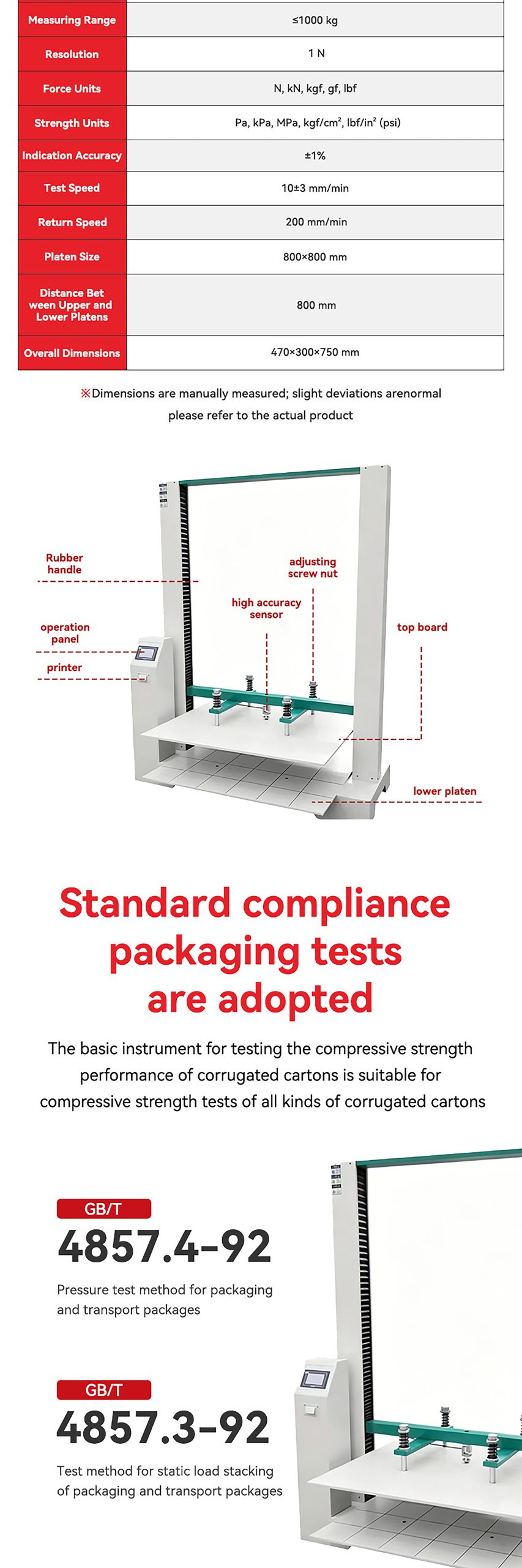

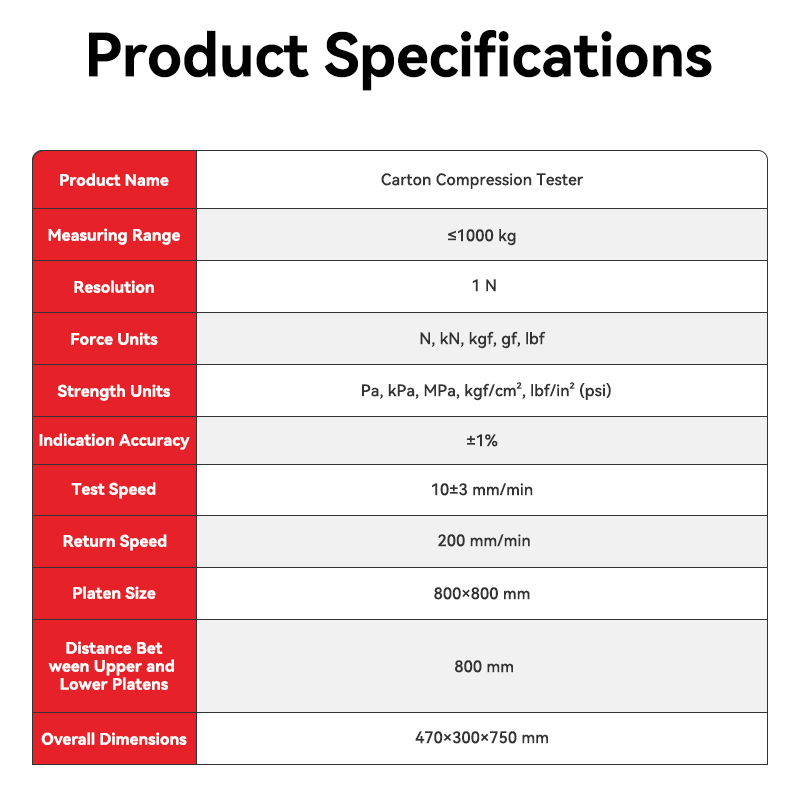

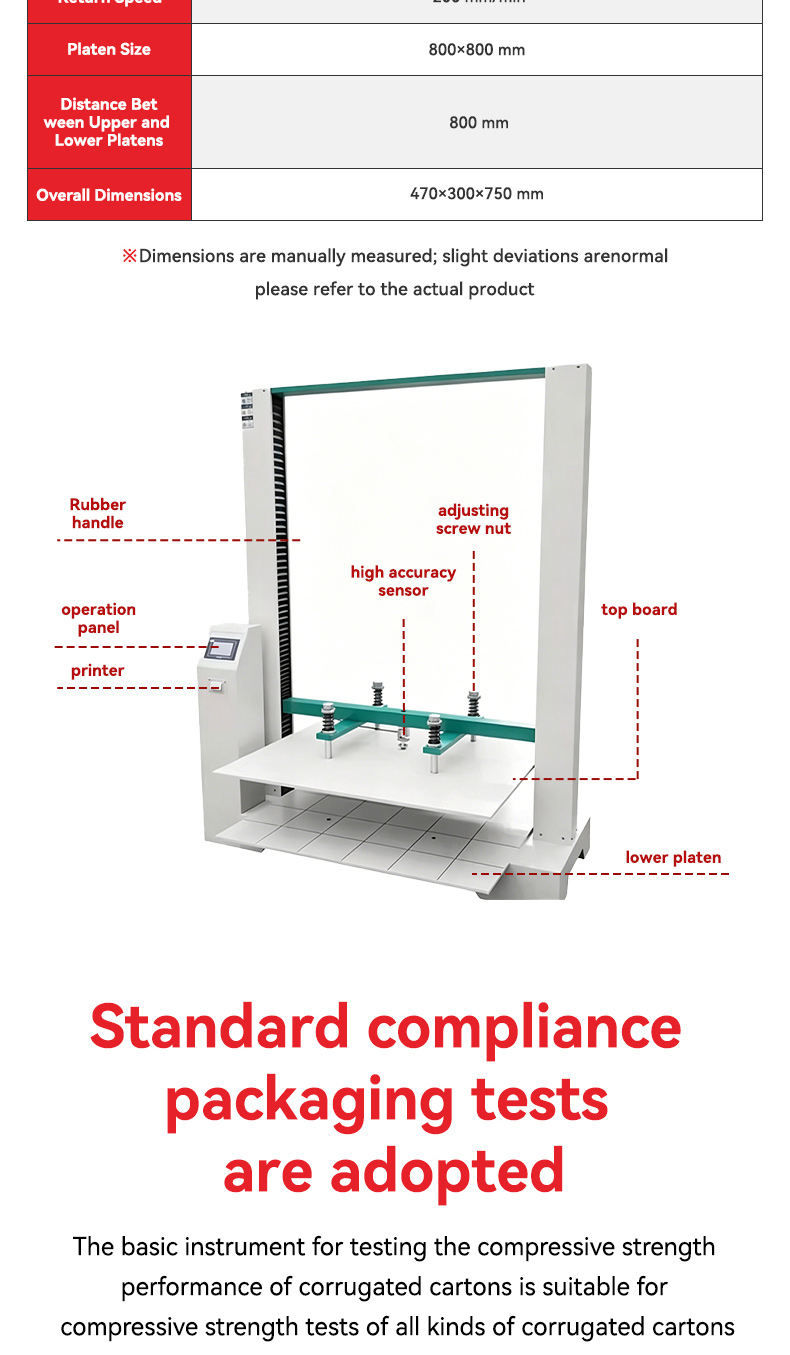

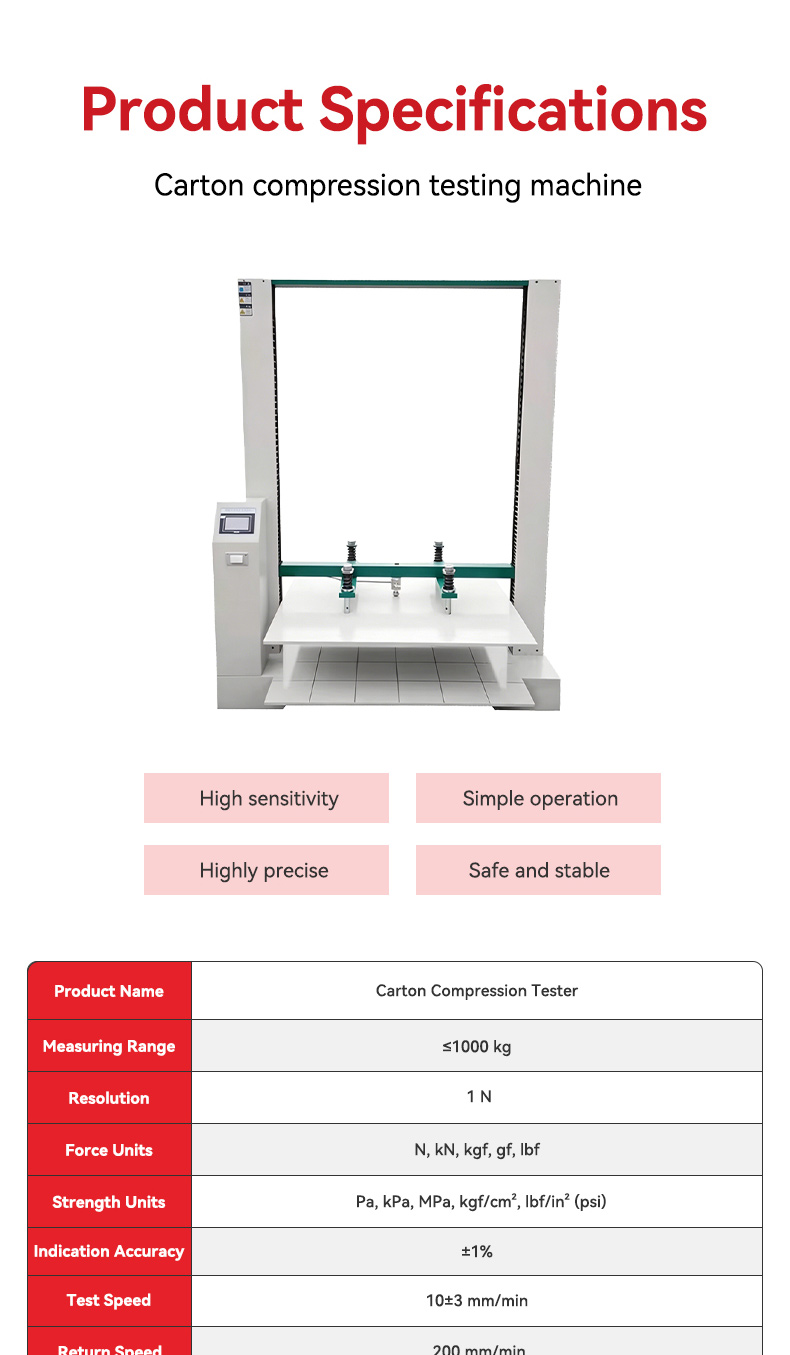

Technical Specifications

ndustry Applications

• E-commerce & Logistics: Optimizing shipping box thickness to reduce weight while maintaining safety.

• FMCG & Beverages: Testing the stacking strength of bottled water and canned goods trays.

• Paper & Packaging: Quality control for corrugated board manufacturers.

• Home Appliances: Evaluating the protective integrity of large-scale carton packaging.

---

Why Choose TOPIL?

• 22 Years of Proven Precision: Equipping global supply chains with reliable testing data since 2004.

• Expert Support: We provide comprehensive installation videos and English-speaking technical assistance.

• Secure Export Logistics: Shipped in a reinforced, fumigated plywood crate designed for international sea or air freight.
