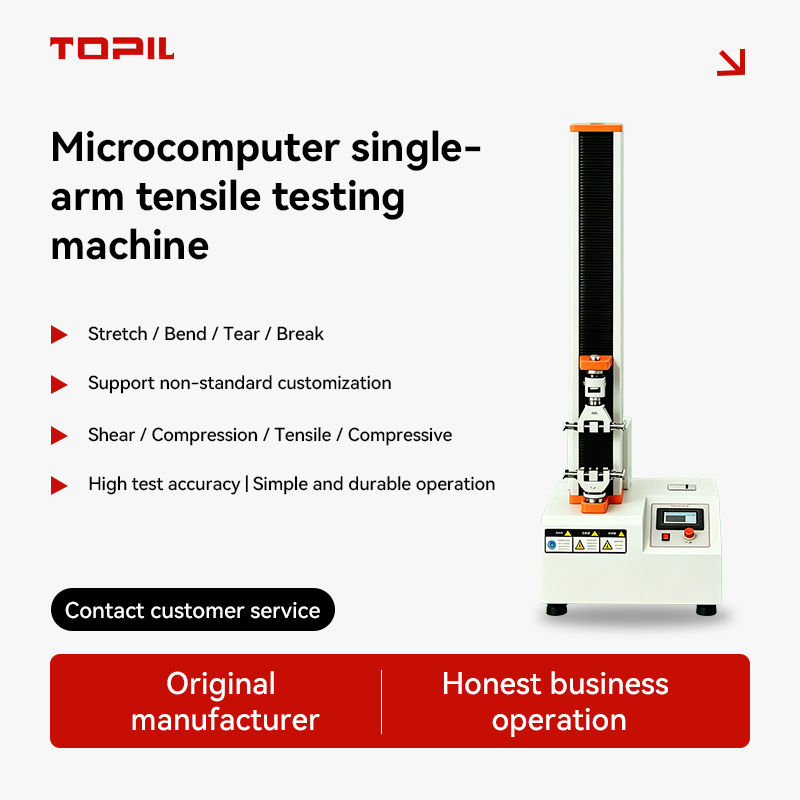

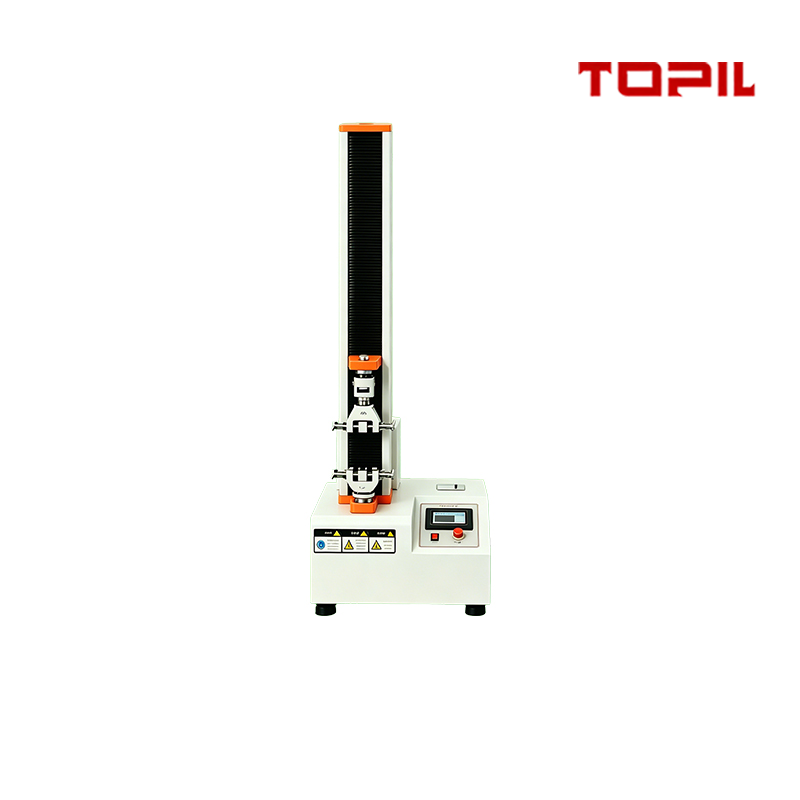

TOPIL Omni-Pull™ Single-Column Tensile Testing Machine – A Precision Universal Testing Machine (UTM) with a 7-inch Smart Touchscreen

Key Features

• High-Precision Force Measurement: Equipped with a world-class load cell providing accuracy within ±0.5%of the indicated value.

• Smart Touchscreen Interface: 7-inch PLC color touchscreen for real-time display of Force, Displacement, and Stress-Strain curves.

• Versatile Testing Modes: Pre-programmed for Tensile, Compression, Peeling (90° & 180°), Tearing, and Constant Load tests.

• Stepless Speed Control: Precision AC Servo Drive system (optional) or high-torque motor allowing speeds from 1 to 500 mm/min.

• Automatic Reset & Protection: The crosshead automatically returns to the starting position after testing, with built-in over-travel and overload protection.

• Data Connectivity: Built-in micro-printer for instant receipts and a USB port for exporting professional Excel/PDF reports.

---

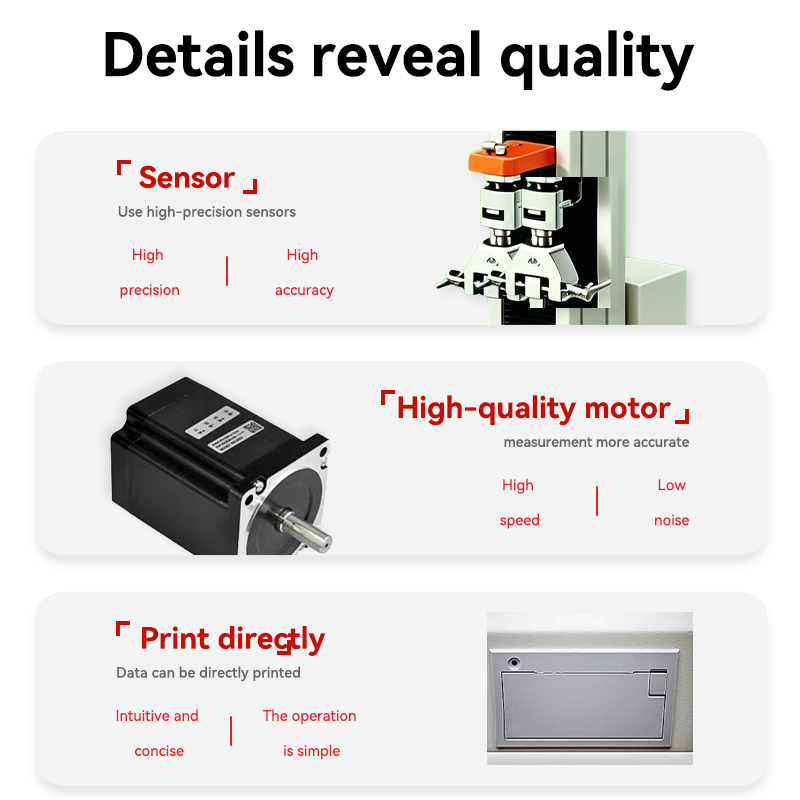

Technical Deep-Dive

1. Superior Mechanical Stability

Our 22-year legacy in instrument engineering ensures that even our compact single-column models are built for zero-flex. The high-precision ball screw ensures smooth, linear motion, eliminating the “jitters” often found in entry-level belt-driven machines.

2. Standalone Intelligence

Unlike traditional testers that require a dedicated PC, the Omni-Pull™ can handle everything on-screen.

• User-Friendly UI: Easily input sample dimensions (width, thickness) and the machine calculates Tensile Strength (MPa) and Elongation (%) automatically.

• Multi-Unit Switching: Toggle instantly between N, kN, kgf, lbf, and gf.

3. Interchangeable Grips

Designed for a wide range of industries, the machine features a quick-release coupling system. Switch from Pneumatic Grips for thin films to Wedge Grips for wires or Compression Platens for foam in under 60 seconds

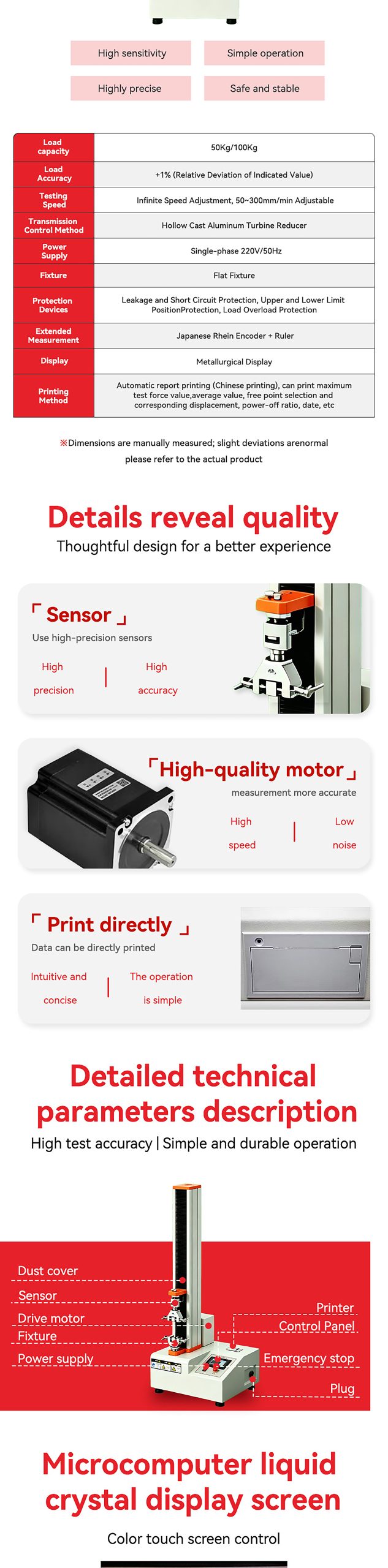

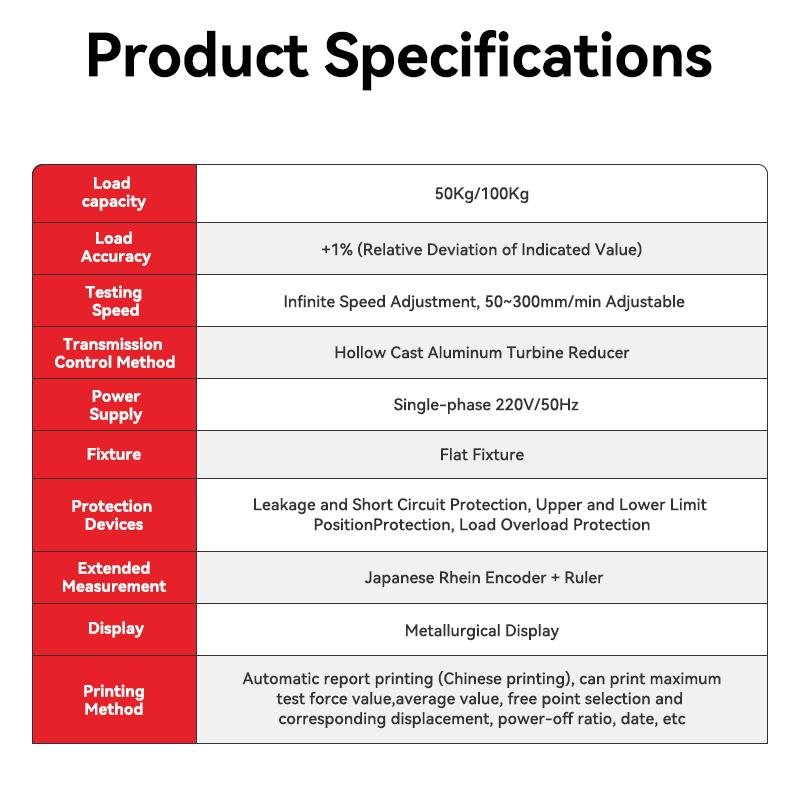

Technical Specifications

Industry Applications

• Plastic & Rubber: Testing the breaking strength and elongation of O-rings and plastic strips.

• Adhesives & Tapes: 90∘ and 180∘ peel strength testing.

• Electronics: Testing the pull-out force of wire terminals and connectors.

• Medical Packaging: Evaluating the seal strength of blister packs and surgical pouches.

---

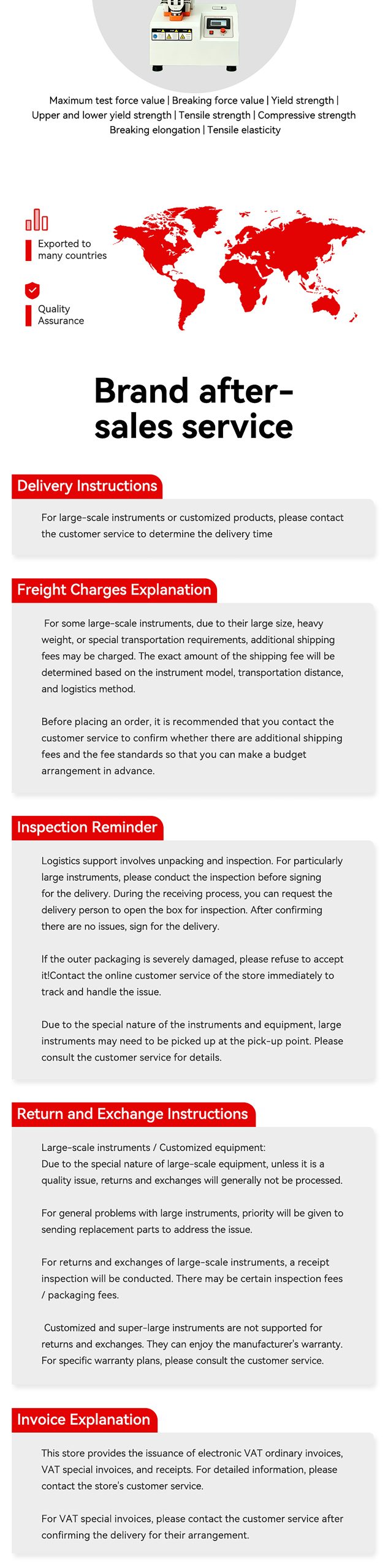

Why Choose TOPIL?

• 22 Years of Proven Precision: A trusted partner for global quality control laboratories since 2004.

• Global Support: We provide English-speaking technical support and detailed video installation guides.

• Secure Export Logistics: Shipped in a reinforced, fumigated plywood crate to ensure safe delivery to over 80 countries.
