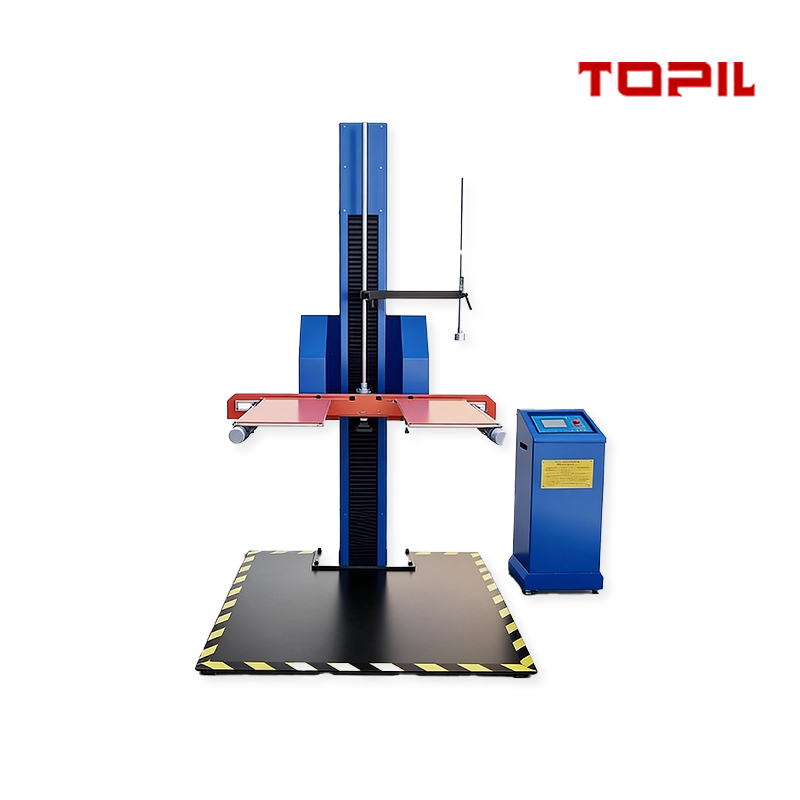

TOPIL Logi-Guard™ Single-Arm Drop Tester – High-Capacity Impact Resistance Testing for Cartons & Large Packages

Key Features

• Precision Single-Wing Release: Features a high-speed electromagnetic/pneumatic release mechanism that ensures the wing retracts instantly, allowing for a “Free Fall” with zero initial rotation.

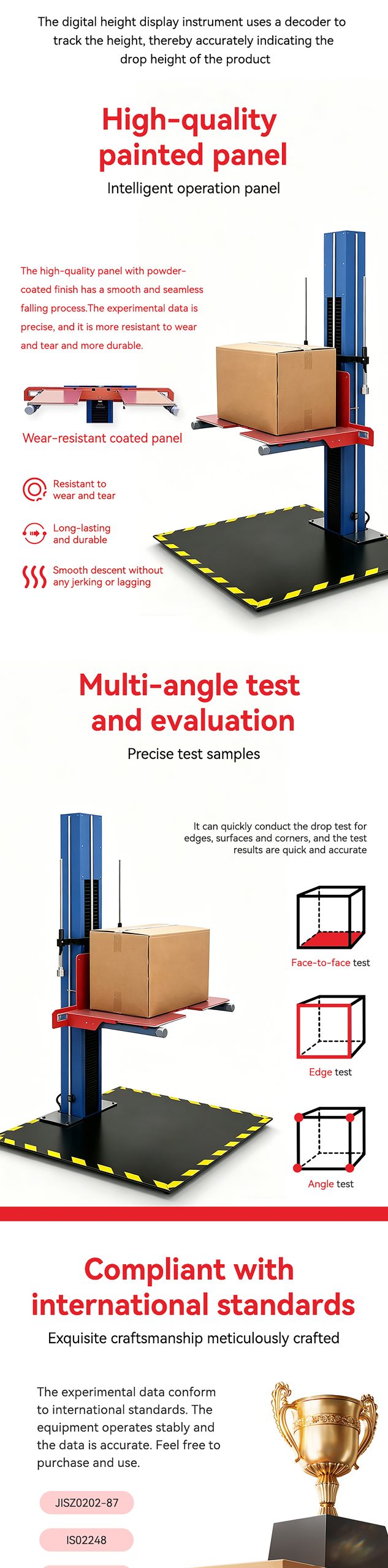

• Versatile Drop Orientations: Specially designed for high-accuracy Face, Edge, and Corner drops, identifying the weakest points of your packaging.

• Heavy-Duty Capacity: Engineered to handle test loads from $60\text{kg}$ to $100\text{kg}$ (customizable models available for heavier crates).

• Smart Digital Height Adjustment: Motorized lift system with a digital display for effortless height settings from $300\text{mm}$ to $1500\text{mm}$.

• Durable Impact Surface: Equipped with a reinforced, extra-thick solid steel base plate to ensure maximum energy reflection and accurate test results.

• Global Standard Compliance: Fully meets and exceeds ISO 2248, ASTM D5276, and GB/T 4857.5requirements.

---

Technical Deep-Dive

1. Zero-Friction Wing Retraction

The core of an accurate drop test is the “wing speed.” Our 22-year engineering legacy has perfected a high-tension spring-release system. The wing swings down and away from the package at a speed exceeding gravity, ensuring the sample falls purely vertical without the “wing-clip” effect common in cheaper models.

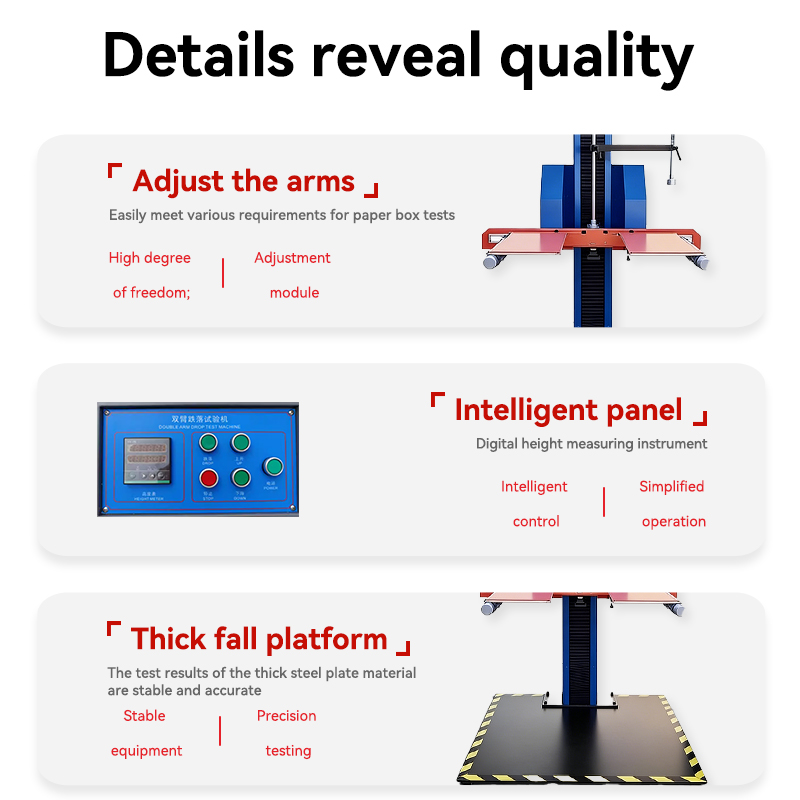

2. Intelligent Height Positioning

• Auto-Stop Technology: The motorized arm includes travel limit switches to prevent mechanical over-extension.

• Precision Scale: A digital encoder ensures the height displayed on the controller is accurate within $\pm 2\text{mm}$ of the actual drop distance.

3. Reinforced Stability & Safety

The Logi-Guard™ features a widened base and a reinforced vertical column to eliminate vibration during high-weight drops. A remote-control release button ensures that the operator is at a safe distance during the impact

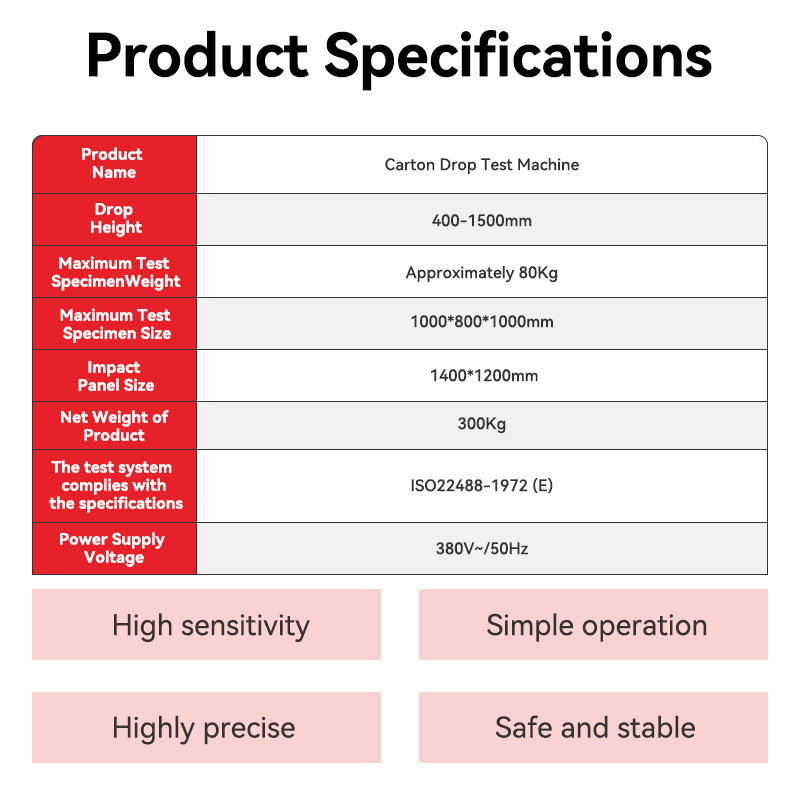

Technical Specifications

Industry Applications

• E-commerce & Retail: Testing shipping boxes for durability against courier mishandling.

• Home Appliances: Evaluating the protective foam and carton integrity for refrigerators, washers, and TVs.

• Furniture & Decor: Impact testing for flat-pack furniture and fragile home goods.

• Industrial Equipment: Ensuring critical machine parts survive the drop-shocks of maritime or air freight.

---

Why Choose TOPIL?

• 22 Years of Proven Precision: A trusted partner for the world’s leading logistics and packaging firms since 2004.

• Ready for Global Export: Shipped in a reinforced, fumigated plywood crate with full CE documentation.

• Complete Support: Includes a Calibration Certificate, video setup guides, and a 1-year comprehensive warranty.
